Pro Drill hydraulic rock /concrete splitter is a machine which is used in mining work of construction stones, the secondary breaking of large rocks and the partial or integral removing concrete facilities. It can split the objects into many pieces in the natural cleft surface.
Advantages:
Hydraulic stone & concrete splitter is one of the efficient, safest and easiest ways of mining, dimensional stone quarrying, demolition & removing mass and reinforced concrete.
New model no splitter standard configuration is 3 aluminum cylinder with centre wedge and one counter wedge for each, and plus diesel motor engine, pump station, and high pressure hose etc.
|
Model Number
|
Hole
Diameter
(mm)
|
Counter Wedge
Dia
(mm)
|
Counter Wedge
Length
(mm)
|
Min hole
depth
(mm)
|
Actually splitting
force
(ton)
|
Weight
(kg)
|
Length Cylinder
Body
(mm)
|
Splitting
Distance
(mm)
|
| PD250 |
42-44 |
40 |
250 |
550 |
450 |
34 |
700 |
10-18 |
| PD350 |
44-46 |
42 |
350 |
650 |
450 |
35 |
700 |
10-18 |
| PD450 |
46-48 |
44 |
450 |
750 |
450 |
36 |
700 |
10-18 |
Main Products:
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45,T51, ST58,GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters
Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year’s professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
|
|

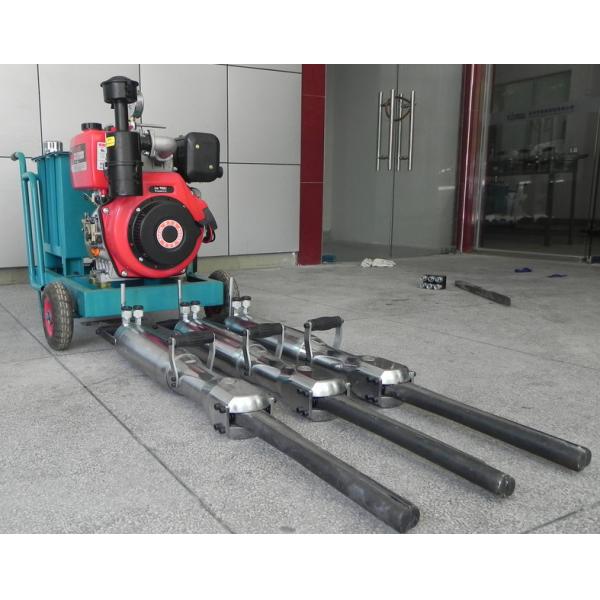

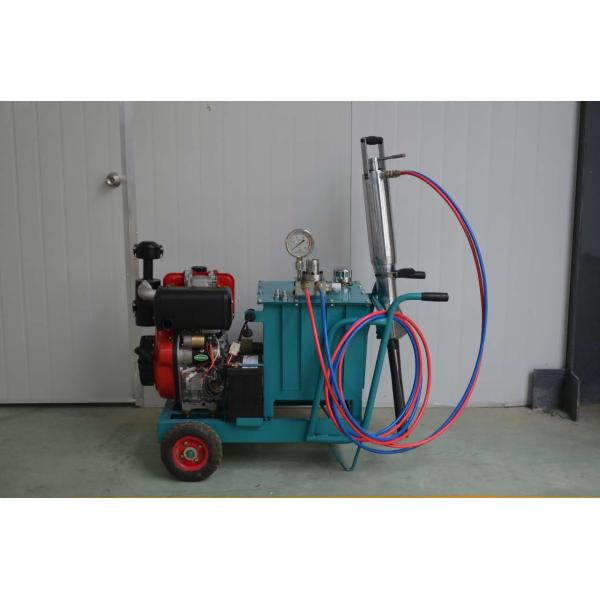

Hydraulic Concrete Splitter PD250 PD350 PD450 Images
|
