Pneumatic Integral steel grinder for chisel bits, integral drill steels carbide sharpening

Product Categories

Xiamen Prodrill Equipment Co., Ltd

Contact Now

Pneumatic Integral steel grinder for chisel bits, integral drill steels carbide sharpening

Name: Pneumatic Integral steel grinder for chisel bits integral drill steels carbide sharpening
Brand: Pro Drill
Price: 1 USD

Quality Pneumatic Integral steel grinder for chisel bits, integral drill steels carbide sharpening for sale

Brand Name : Pro Drill

Model Number : PD-125

Certification : ISO:9001

Place of Origin : Beijing, China (Mainland)

MOQ : 1 unit

Price : FOB $500.00/ unit

Payment Terms : Western Union,L/C,T/T

Supply Ability : 200 units /Month

Delivery Time : 10-15work days

Packaging Details : Wooden box

Type : Cylindrical Carbide Grinding Machine

Disc Diameter : 125*63*32mm

Max. Grinding Diameter : 250mm

Usage : grinding cemented carbide of integral drill rod, tapered chilse bits

Brand : Prodrill

Contact Now

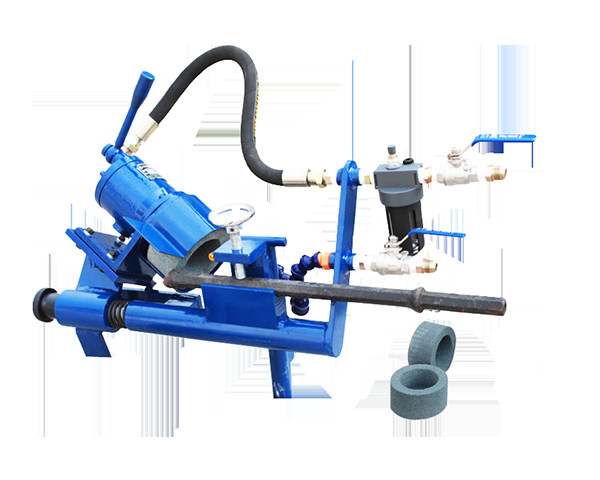

Model No. PD-125 penumatic integral steel grinder

This pneumatic machine is designed for grinding the chisel bits and integral drill rods.Your worn bit or rod can be reused after being grinded by our grinding machine, to prolong their service life and save your money. It's hand-held using, very convenient. And we have CE certificate for this machine.
PD-125 Air grinding machine (for Integral rod, chisel bits sharpening) milling machine surface grinder. Its Capable for re-grinding of Blunted Drill Steel Rods at an angle of 110o. Since the integral drill steel grinder is subjected for arduous working conditions in the Mines, Quarries. The Grinder is now developed with specialized design and mounted on Drill Steel Rods, possessing high design and mounted on Drill Steel Rods, possessing high strength balance and easy to transport and simple to setup.

Techncal Specification
Rotaton speed	3500 RPM max
Motor power	HP2
Sharpening angle	110°
Sharpening radius	125mm
Operating pressure insufficiet	6.0bar
Air consumption at 6 bar	1.5mc/min
Abrasive grinder diameter	152mm
Grinder height	70mm
Grinder thickness	22mm
Grinder hole(diameter)	32mm
Bench version weight	36kg
Portable version weight	37kg

Pneumatic Integral steel grinder for chisel bits, integral drill steels carbide sharpening

Pneumatic Integral steel grinder for chisel bits, integral drill steels carbide sharpening Images
